Earthing & Lightning Protection Systems in Jodhpur

Introduction

Earthing and lightning protection systems in Jodhpur are used to safely discharge fault currents and lightning strikes into the ground, protecting personnel, machinery, and electrical installations across industrial, commercial, and institutional projects. In a city built on the arid, sandy and rocky terrain of the Thar Desert margin, achieving a stable, low-resistance earth is a technical challenge that standard rod-in-soil installations often fail to solve.

Akaaltech manufactures earthing electrodes, chemical earthing systems, cable trays, and IS/IEC 62305-compliant lightning protection systems, and supports Jodhpur projects with site assessment, technical drawings, and installation guidance. Request a quotation or share your project drawings for a design recommendation.

What Are Earthing and Lightning Protection Systems?

An earthing (grounding) system connects the non-current-carrying metal parts of an electrical installation — panels, enclosures, structural steel — to the earth through a low-resistance path. Its job is to route fault current safely away from equipment and people the moment insulation fails or a short circuit occurs.

A lightning protection system is a separate but related discipline. It intercepts a direct lightning strike using an air terminal, carries the strike current down through a conductor, and dissipates it into an earthing network designed to handle very high transient currents without flashover. Both systems are engineered together on most industrial and commercial projects, since a lightning protection system is only as effective as the earth pit it terminates into.

Why Jodhpur Projects Need Purpose-Built Earthing Design?

Jodhpur lies at the edge of the Thar Desert, and district soil surveys classify much of the area as sandy, loamy, or shallow rocky terrain with low natural moisture retention. Groundwater in several pockets also carries salinity from the Luni and Mithri river basins. Together, these conditions push earth resistivity well beyond what a plain driven rod is designed to manage on its own:

Soil / Site Condition	Typical Resistivity Behaviour	Practical Implication
Dry sandy soil (common across Jodhpur city and MIA belt)	High and unstable, rises further in summer	Conventional GI rods alone often can't maintain a consistent earth resistance.
Shallow rocky / sandstone strata (parts of Basni, Boranada, Mandore)	Very high resistivity near the surface	Deeper earth pits, chemical backfill, or conductive concrete are usually required.
Saline sub-soil pockets near the Luni/Mithri basin	Comparatively lower resistivity, but highly corrosive to plain steel	Corrosion-resistant earthing electrode materials become an important selection factor.

For an electrical contractor or MEP consultant working on a factory, hospital, or data centre in Jodhpur, this means the earthing design has to start with an actual soil resistivity reading, not a standard drawing copied from another city. Akaaltech's technical team reviews soil test data (or arranges soil resistivity measurement) before recommending electrode type, pit depth, and backfill compound, so the delivered earth resistance holds up through Jodhpur's summer heat and the short monsoon window alike.

Applications Across Jodhpur's Industrial and Commercial Base

Akaaltech supplies and installs earthing and lightning protection systems for:

Textile, handicraft, and stone-processing units across MIA Basni Phase I and II
Engineering, bearing, and metal-fabrication units in the Boranada and Heavy Industrial Area belt
Guar gum, agro-processing, and food-park units at EPIP Boranada
Hospitals and diagnostic centres requiring sensitive-equipment earthing
Solar power installations, given Jodhpur's high solar irradiance and active rooftop and ground-mounted capacity
Warehouses and logistics units along the Jodhpur–Pali and Jodhpur–Nagaur corridors
Telecom towers, substations, and power distribution infrastructure
Educational campuses, government buildings, and defence-related establishments
Residential townships and commercial complexes

If your project sits in any of these categories, share the location and load details, and Akaaltech's team can recommend a system sized to the site.

Products for Jodhpur Projects

Earthing Electrodes and Rods

Maintenance Free Earthing Electrodes — sealed electrode assemblies designed to hold resistivity stable without periodic watering, useful where dry sandy soil would otherwise need frequent maintenance.
Chemical Earthing Electrodes — a copper or GI rod surrounded by a conductive backfill compound that keeps resistance low even in Jodhpur's dry, rocky, or sandy pockets, where conventional pits alone often fall short.
Copper Bonded UL Listed Rods — copper-bonded steel rods for driven-rod earthing where soil conditions allow standard depth installation.
Copper Pipe Earthing, GI Pipe Earthing, and Mix Copper Earthing — pipe-in-pit electrode options selected on the basis of budget, expected life, and soil corrosivity.
Namak Koyla Earthing — the traditional salt-and-charcoal backfill method, still specified on some government and residential projects.

Earthing Materials and Accessories

GI/CU Earthing Strips, Flats, and Plates — for bonding structural steel, panels, and earth grids.
Structure/Foundation Earthing — earthing integrated into RCC foundations and structural columns during construction.
Conductive Concrete Earthing — an alternative for sites where driven rods are impractical due to rock or debris at shallow depth.
Earth Enhancing Compound — backfill compound used to reduce resistivity around any electrode type, particularly useful in Jodhpur's low-moisture soil.
Earthpit Covers (PVC, RCC, cast iron) — for pit protection and periodic inspection access.
Perforated Cable Tray and Earthing Mat — supporting electrical infrastructure and equipotential bonding in switchgear rooms.
Exothermic Welding — permanent, low-resistance joints between conductors, rods, and structural steel.

Lightning Protection Systems

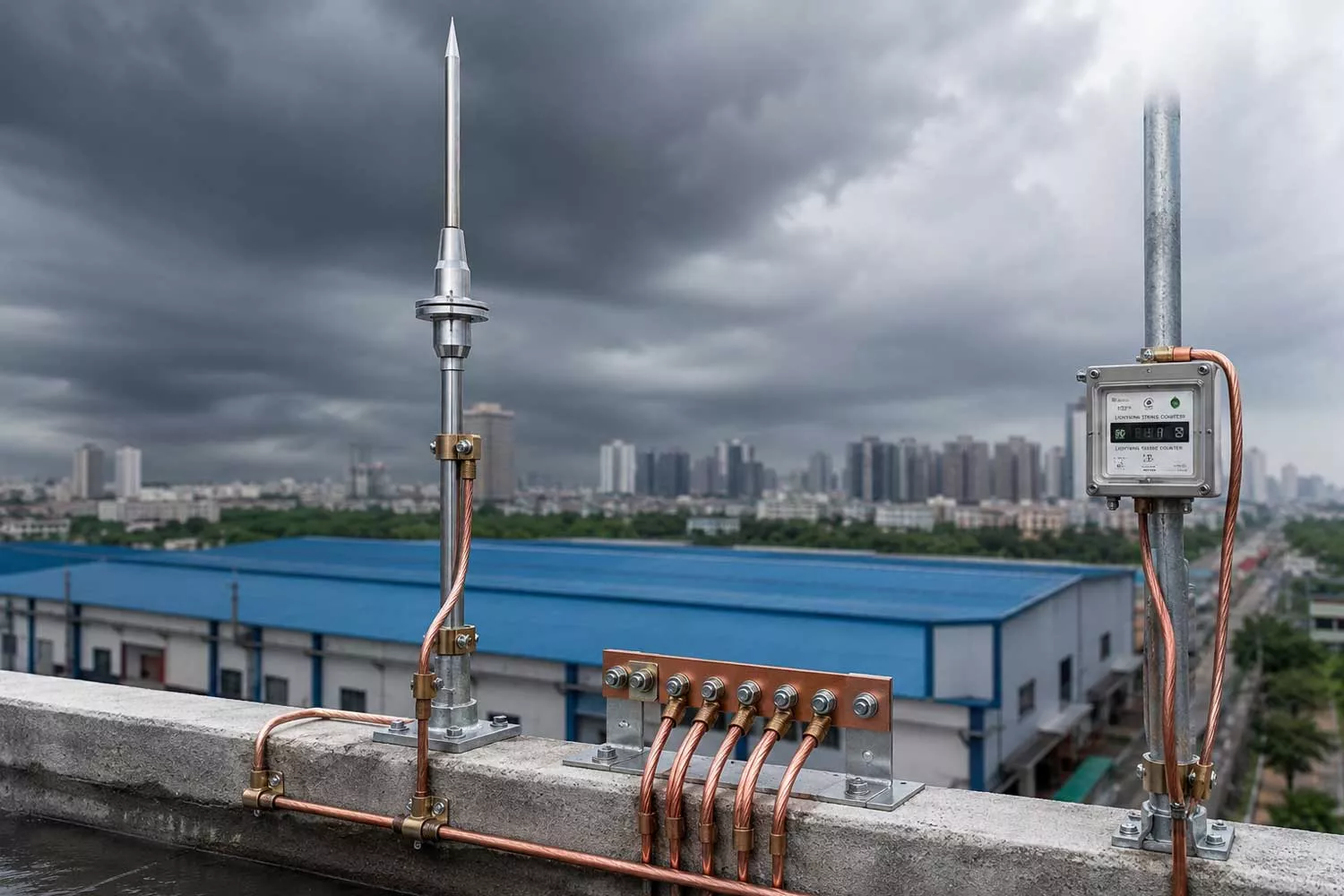

Conventional Lightning Protection System (IS/IEC 62305) — air terminals, down conductors, and earth termination network designed to the current Indian and international standard.
Early Streamer Emission (ESE) Lightning Arrester — a wider protection radius per unit, often specified where roof space or the number of air terminals needs to be minimised.
Digital Lightning Strike Counter (8-digit) — records strike events for maintenance and insurance records.
Digital Grounding Device — continuous earth resistance monitoring for critical installations.

Services

Soil Resistivity Measurement — Wenner four-point testing to size the earthing system correctly before installation.
Installation of Earthing System — site execution, from pit excavation to testing and handover.
Installation of Lightning Protection System — air terminal, down conductor, and earth network installation per IS/IEC 62305.
Health Assessment of Earthing System — resistance testing and physical inspection of existing installations.
Lightning Protection System Audit — compliance check of an existing LPS against IS/IEC 62305.
EMI/EMC Study — assessment for sites with sensitive electronic or telecom equipment.

Installation Process for Jodhpur

Site and soil assessment — soil resistivity measurement at the proposed earth pit locations, ideally at more than one point given how much resistivity can vary across a single plot in sandy terrain.

System design — electrode type, pit depth, number of pits, and backfill compound selected based on target earth resistance and available space.

Excavation and electrode placement — pit dug to design depth; electrode (rod, pipe, or plate) positioned and backfilled with compound or enhancement material.

Bonding and interconnection — earth pits bonded to each other and to the structure using GI/CU strips or exothermic welds.

Testing — earth resistance measured using the fall-of-potential or clamp method and compared against the design target.

Documentation and handover — test reports, drawings, and maintenance guidance issued for the client's records and compliance file.

For lightning protection, the same site assessment feeds into air terminal placement and down-conductor routing, followed by installation, bonding to the earthing network, and strike-counter commissioning where specified.

How to Select the Right Earthing System for Jodhpur?

Start with a soil resistivity reading. Guessing at electrode type before testing is the most common cause of underperforming earth pits in dry, sandy terrain.
Match electrode type to soil. Chemical earthing or enhancement compound for dry sandy or shallow rocky zones; standard GI or copper rods where soil is favourable.
Size for the load, not just the standard minimum. Substations, data centres, and hospitals typically need lower earth resistance than a general commercial building.
Factor in maintenance access. Maintenance-free electrodes suit sites where periodic watering of conventional pits isn't practical through Jodhpur's long dry season.
Confirm bonding to structural steel and lightning protection. An earthing system and an LPS sharing a common, well-bonded earth network perform more reliably than two separate, poorly connected systems.
Ask for the test report, not just the installation. A completed earth pit without a measured resistance value is not a verified installation.

Standards and Compliance

Akaaltech's earthing and lightning protection systems are designed with reference to IS 3043 (earthing code of practice) and IS/IEC 62305 (protection against lightning). Documentation such as datasheets and test reports is available on request for project compliance files. Akaaltech holds MSME registration and a Quality Management System certificate, along with performance certificates from past projects; copies are available on the Certificates page or on request during the enquiry process.

Why Choose Akaaltech for Jodhpur Projects?

In-house manufacturing: Products are manufactured at Akaaltech's facility and R&D office in Faridabad, allowing consistent quality control across batches.
Founder-led technical background: Akaaltech was founded in 2012 by Engineer Manmohan Singh, with the company's product range built around earthing, lightning protection, ground monitoring, and surge protection systems.
Project track record: Akaaltech has supplied earthing and lightning protection products and services on a large number of completed projects across India.
PAN-India supply with local project support: Materials, technical drawings, and installation support are coordinated for Jodhpur sites from initial enquiry through commissioning.
Documentation on request: Datasheets, compliance references, and test reports are provided to support your project file.

Industries Served in Jodhpur

Textiles and handicrafts, guar gum and agro-processing, metal engineering and bearings, stone and sandstone processing, solar EPC and renewable energy, hospitals and healthcare facilities, warehousing and logistics, education, telecom infrastructure, and government and defence-related establishments.

Areas We Serve Near Jodhpur

MIA Basni Phase I and Phase II, Boranada Industrial Area (including EPIP Boranada and Boranada Phase III/IV), Heavy Industrial Area, Mandore Industrial Area, Sangariya, and surrounding towns and tehsils including Bilara, Phalodi, Osian, and Luni.

Frequently Asked Questions

1. Which earthing system works best for dry, sandy soil in Jodhpur?

Chemical earthing electrodes with a conductive backfill compound generally perform better than plain driven rods once soil resistivity in Jodhpur's sandy or shallow rocky zones runs high, which is common through the dry season.

2. Does Akaaltech supply lightning protection systems in Jodhpur that meet IS/IEC 62305?

Yes. Akaaltech's conventional and ESE lightning protection systems for Jodhpur are designed with reference to IS/IEC 62305, covering air terminals, down conductors, and the earth termination network.

3. How is earthing pricing calculated for a project in Jodhpur?

Pricing depends on soil resistivity results, number of earth pits required, electrode type, and site accessibility. Share your project drawings or site details for a specific quotation.

4. Can Akaaltech test soil resistivity before recommending an earthing system for Jodhpur?

Yes, soil resistivity measurement using the Wenner four-point method is offered as a standalone service or as part of a full earthing design and installation project.

5. What is the difference between conventional and chemical earthing for Jodhpur sites?

Conventional earthing uses a driven rod or plate directly in soil. Chemical earthing surrounds the electrode with a conductive compound, which holds resistance lower and more stable, particularly useful in Jodhpur's dry sandy or rocky locations.

6. Does Akaaltech install earthing and lightning protection systems, or only supply materials, in Jodhpur?

Both. Akaaltech supplies products and also offers installation of earthing systems and installation of lightning protection systems, with site execution and testing included.

7. How often should an earthing system in Jodhpur be tested?

Earth resistance is generally checked at commissioning and then periodically as part of a health assessment, particularly after the summer's peak dry heat when soil moisture — and therefore resistivity — is at its most unfavourable.

8. Is maintenance-free earthing suitable for factories in MIA Basni or Boranada?

Yes. Maintenance-free earthing electrodes are commonly specified where regular pit watering isn't practical, which applies to many multi-shift industrial units in these zones.

9. Can Akaaltech audit an existing lightning protection system in Jodhpur for compliance?

Yes, the Lightning Protection System Audit service checks an installed LPS against IS/IEC 62305 requirements and flags any gaps in bonding, air terminal coverage, or earth termination.

10. Does Akaaltech provide earthing solutions for hospitals and solar installations in Jodhpur?

Yes. Hospitals, data centres, and solar power installations typically need a carefully designed earth network, and Akaaltech supports these along with a dedicated EMI/EMC study where sensitive equipment is involved.

11. What documentation is provided with an earthing or lightning protection project in Jodhpur?

Test reports, technical datasheets, and compliance references are provided as part of project handover, and certificates are available on request.
